Serial number |
Equipment Name, Specification, Model, Component Description |

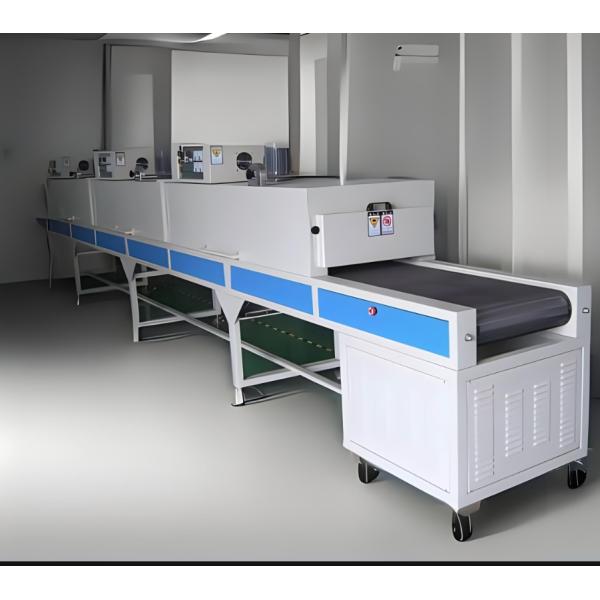

1. | Tunnel heating line |
| a Conveyor body |
| 1. Wire body specifications
|
| 2. Conveyor type: continuous tunnel conveyor |
| 3 Conveyor belt: imported Teflon belt
|
| 4. Rack: 40 * 60 square tube surface spray painted production |
| 5. Sealing and baking paint board for the lower part of the line body in the upper and lower parts area |
| Line drive and tensioning system |
| 1. .Driving power: 1HP permanent horizontal motor with a 1:80 power installed under the machine head. |
| 2. Speed regulation: Taiwan 1HP frequency converter model (SANJING) with adjustable line speed of 0.7-12M/mIN |
| 3. Automatic tensioning device for mesh belt: spiral tensioning type |
2. | heating zone |
| Heating furnace cover |
|
Furnace specifications: total length L5000MM, outer width 800MM. Work area length 3000MM, width 600MM
20 heating tubes with a power of 1KW per unit |
| 2.
There are two 1P vertical motors (Taiwan FUAN) at the top that support the 9-inch wind turbine for hot air circulation |
| 3.
The outer plate of the furnace is made of 1.5mm cold plate baked paint |
| 4. The inner plate of the furnace is made of 1.2mm steel plate |
| 5. Insulation layer aluminum silicate wool (150MM) |
| 6. The bracket is made of square tube (40 * 60) |
|
7. Segmented configuration maintenance
8. Each section has a maintenance handle, which is convenient for maintenance and prevents products from getting stuck inside |
3. | Heater: |
| 1. Normal operating temperature of 200 degrees Celsius |
| 2. Using dedicated infrared heating tubes |
| 3. Using 40 * 60 square pipes as fixed brackets |
| 4. Equipped with high-temperature connecting wires |
4. | electric part |
| 1. Temperature controller KTYB809 |
| 2. Over temperature protection instrument from Japan RKC, voltmeter, ammeter |
| 3. PT100Temperature sensor PT100 |
| 4. Contactor Taiwan Shilin |
| 5.Overheat relay Taian Taiwan |
| 6.Intermediate relay Omron Japan |
| 6.Heating rod infrared 1KW/piece (customized) |
| 7.Terminal block NIM (Japan) |
| 8. Sound and light alarm Taiwan (Taiwan) |
| 9.Heater protection Chint |
